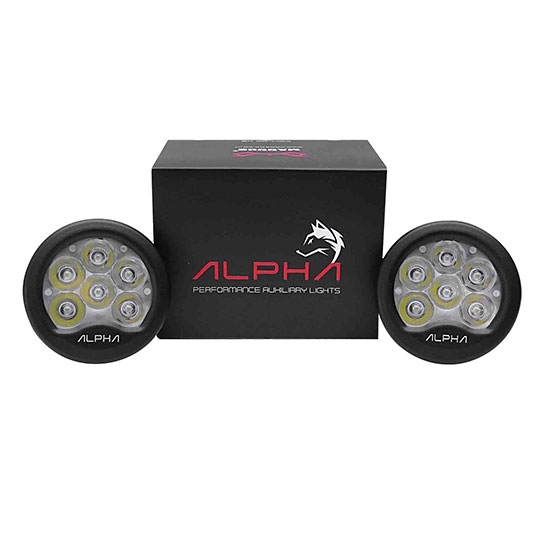

MadDog Alpha Auxiliary light set

This MadDog Alpha Auxiliary light set includes:

• MadDog Alpha Auxiliary light
• MadDog Alpha Light Filter
• MadDog Universal light clamp
• MadDog wiring harness Pro
• MadDog Light Switch Pro

Features of these are as listed below:

MadDog Alpha Auxiliary light Specifications

• LED Type: Nichia LED (Japanese Tech)
• IP Rating: IP-67-Water/dustproof
• Materials: PolyCarbonate & aluminum
• Warranty: 18-Months Warranty
• Color Temp: 5000K - 5700K - Warm white/yellow
• Watt & Volt: 80W & DC 12V
• Current (Power drawn): 5.2 A - Pair
• Life-span: Upto 50,000 hours
• Lumens: 9,600 Lumens
• Beam Distance : 300M
• Optics: Spot 70% and Flood 30% (Combo beam)

MadDog Alpha Auxiliary light Filters Specifications

• 4 Pieces of Nitrile-Silicone Rubber Holder
• 2 pieces of Yellow tinted filters
• 2 pieces of Clear tinted filters
• 2 pieces of Black tinted filters

MadDog Wiring Harness Pro Specifications

1. Braided mesh sleeve for rugged production from dust, heat and harsh weather.
2. 1.5 Sqmm Automotive class wiring.
3. 100% pure Copper Wire.

• Wire Thickness : 1.5 Sqmm
• Wire Capacity : 0 - 18A (Max)
• Fuse  : 15 A
• Relay : 40 A
• Outer : Braided sleeve
• Operating Voltage  : DC 9-32V
• Operating Temp : -10°C to +50°C
• Life-span  : Upto 5 Years
• Total Length : 1.5 M
• IP Rating  : IP-67 Certified
• Terminals : Copper / Tin copper

MadDog Universal Light Mounts Specifications

• Material : Precision Compressed Aluminium.
• Stainless-steel Bolts.
• Neoprene rubber pad.
• Polypropylene Coating.

MadDog Switch Pro (Mirror Mount) Specifications

• Housing(Body):Polypropylene-Powdered Coating.
• IP-Rating: Ip-67 WaterProof.
• Switch Body: Stainless steel.
• Color: Black
• Operating voltage: 12V.
• Operating current: 0A-10A(max).
• Life-Cycle: 1 Million.
• Operation Type: Push button.
• Wire Length: 12inch
• Backlit: Red
